Product Description
Waste motor oil, refers to the oil mixed with moisture, dust, other type oils and metal powders and
other impurities generated by the wear of parts during use;it also refers to the oil goes bad, resulting
in organic acids, colloid and and asphaltenes.

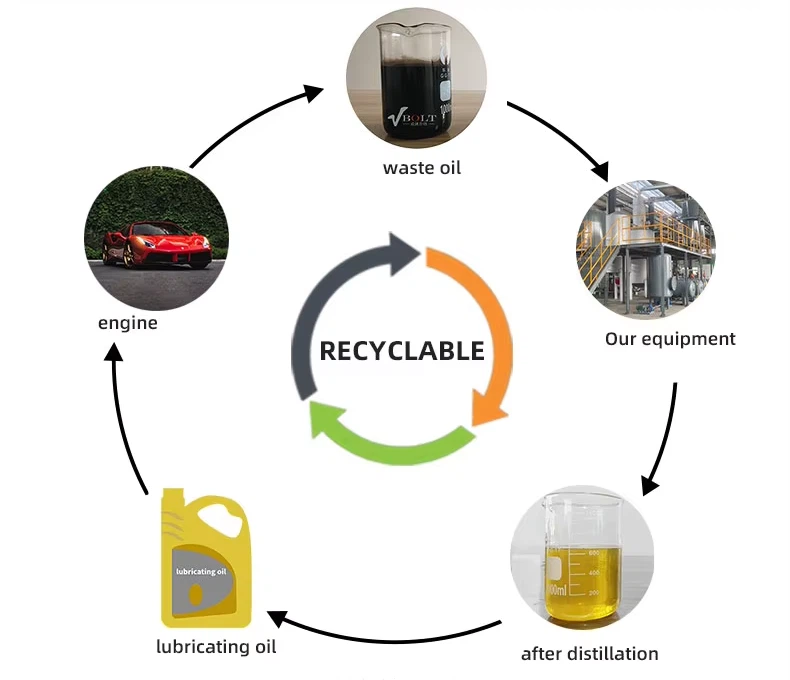

Group I&II base oil can be obtained by the following technology:
(1)Pretreatment to remove particle and impurities from oil,
Filter/Flocculant Precipitation/Centrifuge are optional.
(2)Adopts independent operating system of flash distillation technology to separate water first.
(3)Oil gas will evaporate at different boiling points to produce base oil in the fractionating distilation column.
Then combined with large area condensers to improve oil gasification efficiency.
(4)Refining process: can choose clay, silica gel, solvent extraction according to the market demand.
The whole process is environmental- friendly ,the colloid and asphaltene in the waste engine oil are
all into sludge, can be used as asphalt.
Application

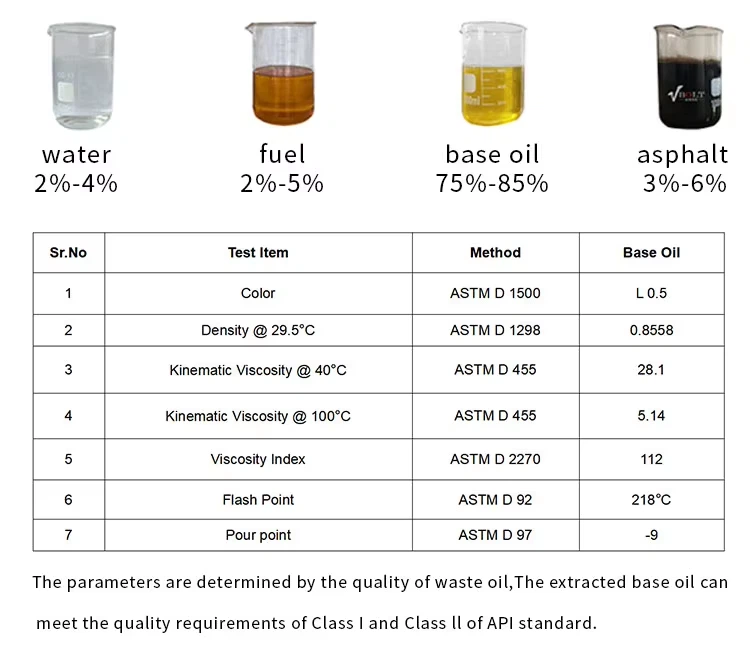

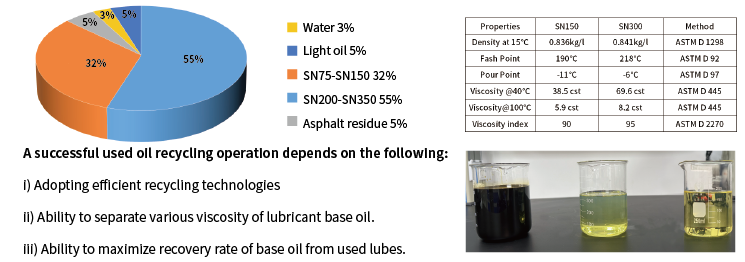

Equipment Parameters

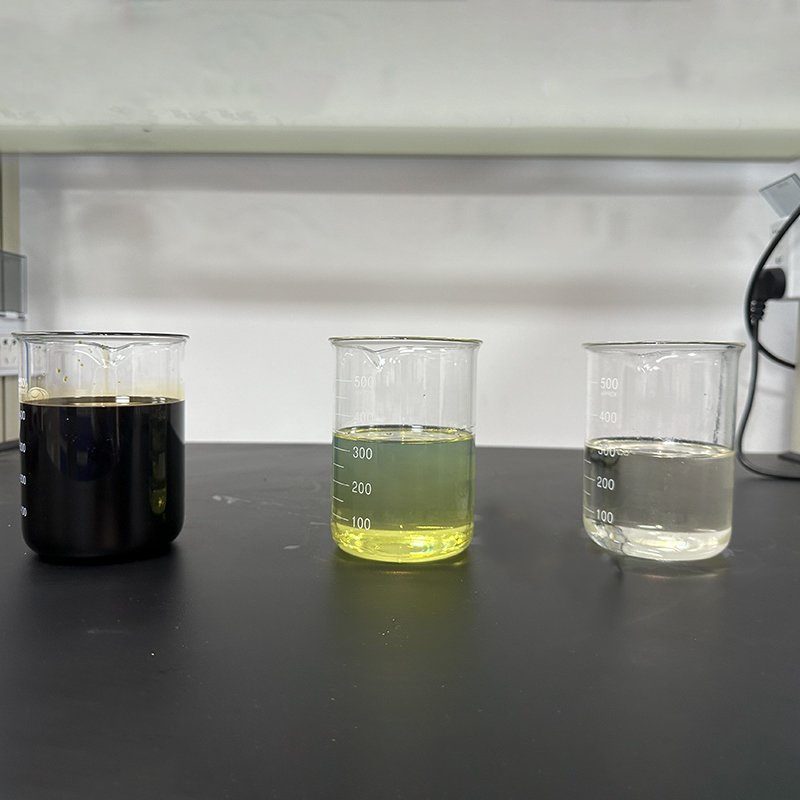

First, the base oil produced by our equipment can reach a standard close to Group II base oil. With our mature and professional refining technology, we can fully remove impurities, moisture, and harmful components from waste oil, so that the final base oil has stable performance, good viscosity index, and excellent usability, which can meet the production requirements of high‑quality lubricants and related products.
Second, our solution helps customers achieve clear cost reduction and efficiency improvement. By regenerating waste oil into high‑quality base oil, customers can greatly lower their expenditure on purchasing raw materials. At the same time, the equipment runs stably, with high conversion efficiency and low operating cost, which effectively improves overall production efficiency and enhances long‑term economic benefits.
Third, all performance parameters of our regenerated base oil are well‑documented and traceable. We have a complete quality inspection system, and every key indicator is tested by professional instruments and recorded in detail. Customers can check and verify all parameter data at any time, which fully guarantees product quality, stability, and credibility.
Technical Advantage
Residue free:
No acid, no solvent, no waste. Bottom residues produced during this process can be sold as finished
products such as bitumen/bitumen modifiers.
Noncoking:
Prevent the waste lubricating oil from being heated at high temperature for a long time, resulting in
oil damage, avoiding coking and producing more gum and asphalt.
Even heating:
Evenly heated, more stable oil quality. Fast evaporation speed, improving work efficiency.
High recovery rate:
Maximizes the recovery of useful components ,the yield of waste oil can reach to 75% ~ 85%.

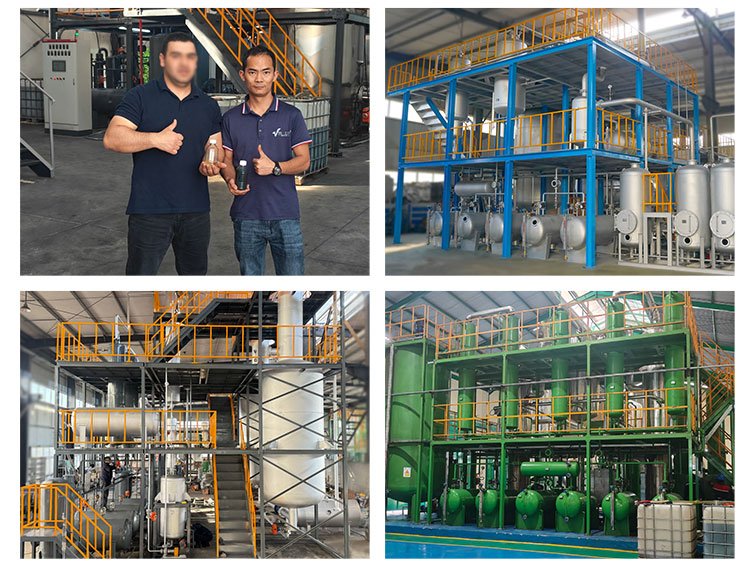

Successful Case
Technical services
Pre-sales Service
*We provide various forms of pre-sales services, such as formulating investment budgets, manufacturing , allowing customers to make reasonable plans at a lower cost.
*Investment Budget: Provides product profit analysis, machine recommendations and related budgets, human resource allocation and budget preparation services.
*Factory Planning: Provides equipment library dimensions, equipment layout design, and workshop construction suggestions.
After-sales Support
*We provide customers with free training , enabling them to independently use and maintain the machines.
*We will promptly answer customers' technical questions; if necessary, we will provide on-site guidance and assistance 。
*If customers need new equipment, additions, or modifications, we will provide free technical guidance.
*All machines are provided with lifetime free technical assistance 。
*All major machine parts are warranted for up to 24 months. Consumable parts are warranted for 12 months.
